Dimensions //
410mm (l) x 130mm (w) x 95mm (d)
Power supply //
220-240V, 50-60Hz 17 watts
Set up //

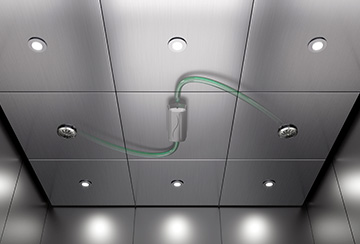

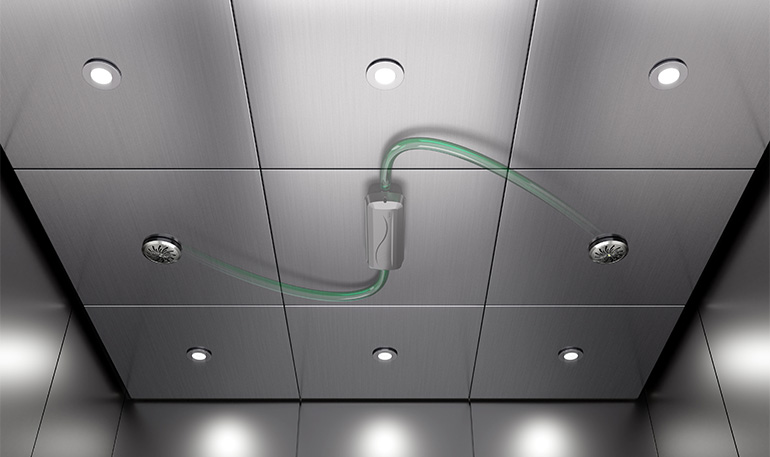

Unit concealed with only inlet and outlet vents visible in lift car ceiling
Construction //
Polycarbonate moulding
Weight //
1.5kg
Operation //
Continuous operation

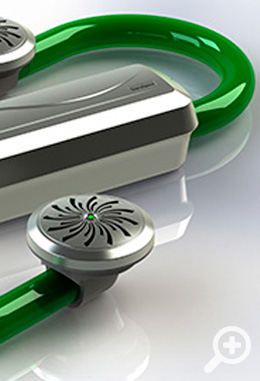

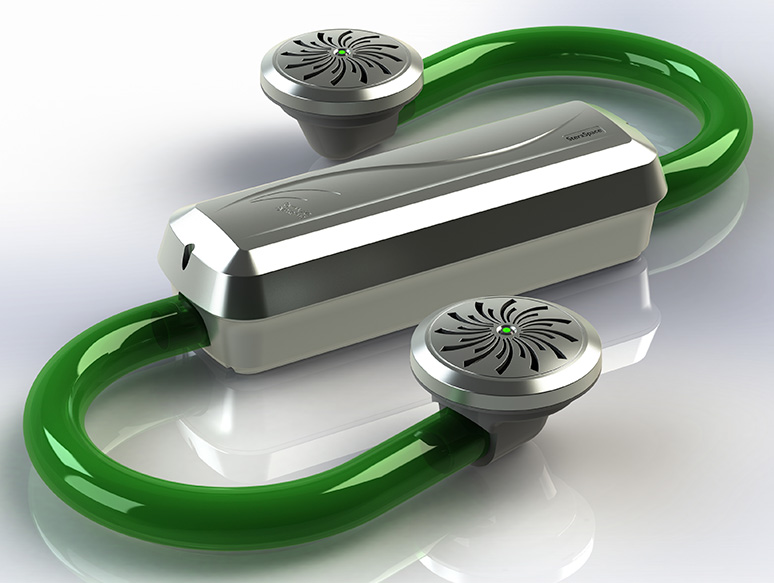

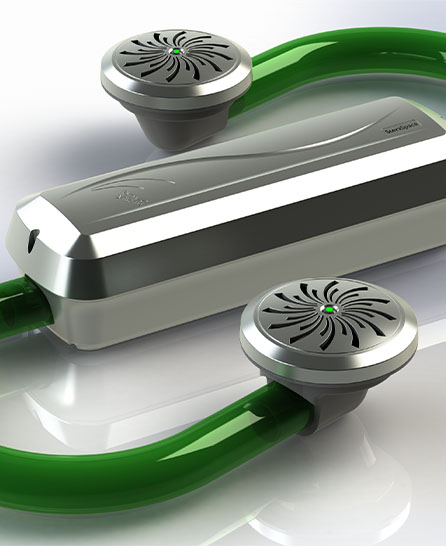

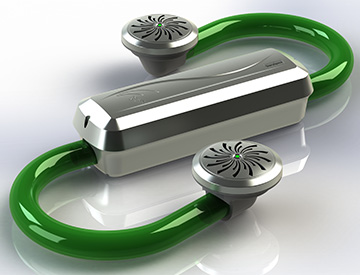

SafeSpace Elevator units use ultraviolet germicidal irradiation and advanced oxidation to improve air quality inside the lift car. A built in fan draws contaminated air from the cab through a concealed inlet and into an internal treatment chamber where ultraviolet energy and advanced oxidation destroy airborne microorganisms and break down odour causing compounds. Treated air is then returned through the outlet vent to help reduce airborne contaminants and manage the smells that build up in busy elevators.
Each unit is designed to maximise dwell time within the treatment chamber while maintaining a compact form factor that fits above the lift car ceiling. This provides quiet, continuous air treatment during normal lift operation with low energy consumption and minimal impact on cab design.
